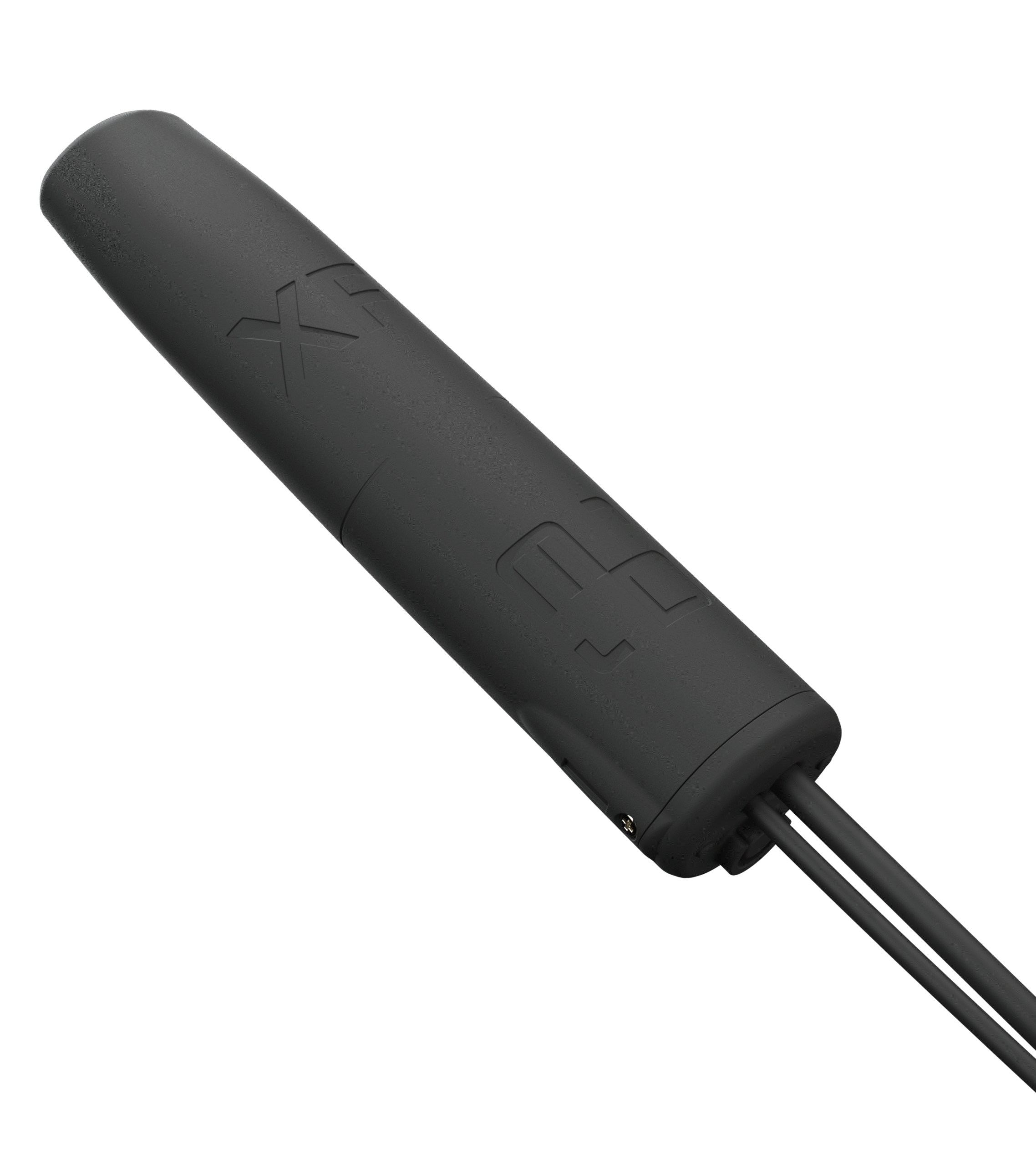

WIDEBAND XF ANTENNA FOR WINGMAN
Full-Spectrum Drone Detection. From 200 MHz to 6 GHz.
XF stands for Extended Frequency. It delivers spectrum-wide coverage from 200 MHz to 6 GHz – far beyond traditional detection limits. Adversaries exploit every corner of the spectrum, from FPV links to advanced high-band systems. WideBand XF restores control with uninterrupted awareness in a soldier-portable solution
Soldier Level Awareness
Cross Device Communication
Updated Continuously
Alarms Provided
Benefits of the Wideband XF Antenna
Detects threats across all bands from 200 MHz – 6 GHz – no gaps, no blind spots.
Directly connects with Wingman and ATAK for instant overlays and alerts.
Operates fully passive, keeping operators invisible to the enemy.
Profiles threats and triggers automated responses against evolving tactics.
Capability & Features
Comprehensive Coverage
WideBand XF, designed for seamless integration with Wingman and ATAK, delivers uninterrupted awareness from 200 MHz to 6 GHz. By closing critical spectrum gaps, it uncovers FPV drones, commercial UAVs, and custom-built platforms exploiting both low and high frequencies.
ATAK-Powered Visualisation
Detection becomes actionable through direct integration with ATAK (Android Tactical Awareness Kit). Signals across the spectrum are instantly visualised and flagged, giving operators a clear operational picture and enabling faster, data-driven decisions in contested environments.
Why WideBand XF?
As adversaries shift to unpredictable frequency bands, WideBand XF restores control of the spectrum. It equips forces with decisive intelligence and the ability to counter evolving drone tactics with confidence and speed.
Specifications
| Frequency Range | 200 MHz – 6 GHz |
| Polarization | Linear Vertical |
| Azimuth Coverage | 360° |
| Drone ID | Bluetooth 4, Bluetooth 5 LR, Wi-Fi beacons, Wi-Fi NAN |
| Compatibility | Wingman WM100, WM103, WM104, WM105 |
| Supply | Powered from Wingman |
| Size | 220 x 55 x 44 mm |
| Cable Length | 1 m |
| IP Rating | IP67 |
| Temperature Range | -32°C to +65°C |
| Additional Components | Compass, GNSS-receiver, and Inertia Measurement Unit |
