Wolfpack
Drone Detector

360 Degrees C-UAS Detection

The WOLFPACK is a 360° direction–finding RF drone detection capable of providing make/model information to the user by searching for control signals and video feeds from the drones and the controller.

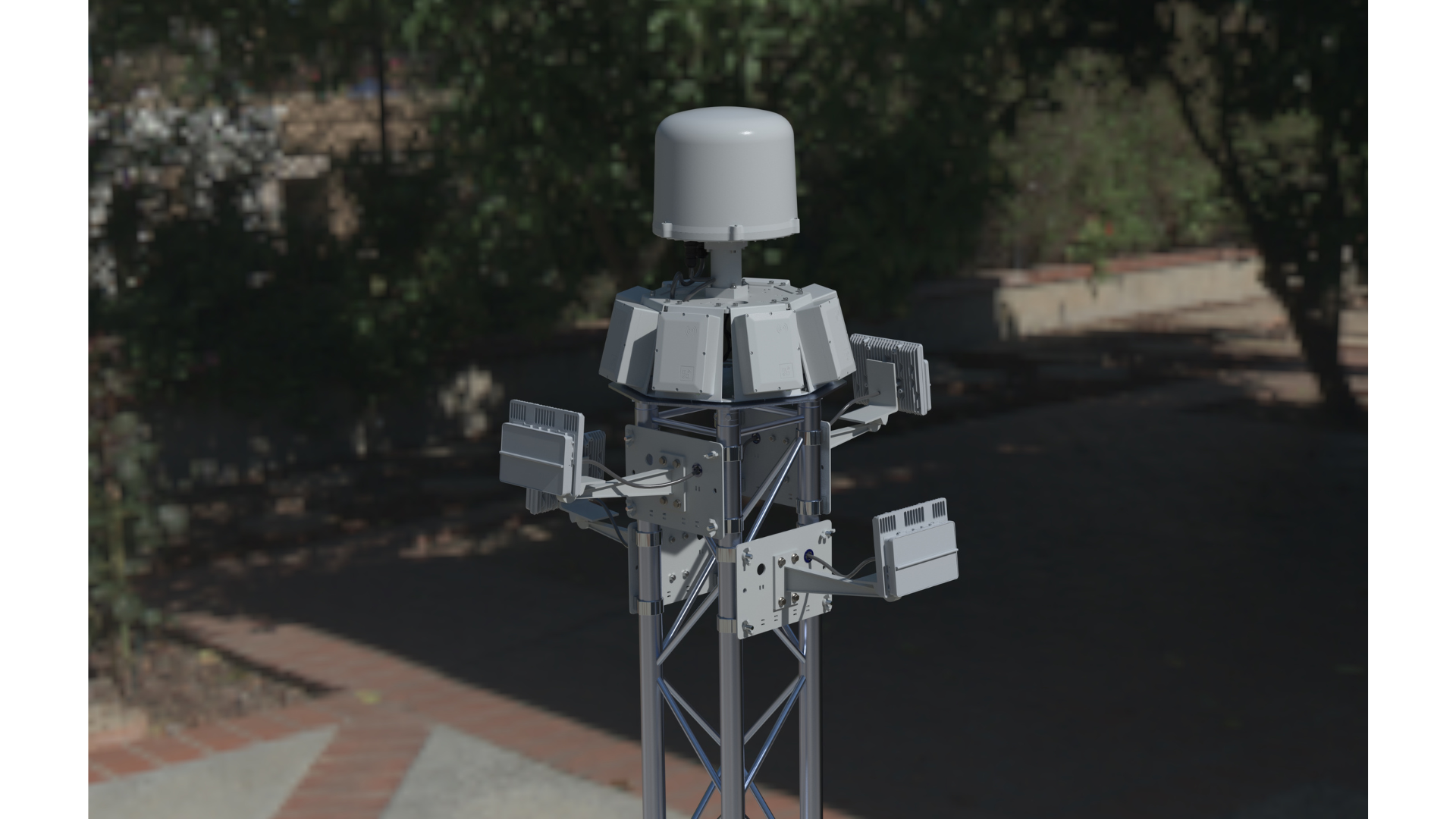

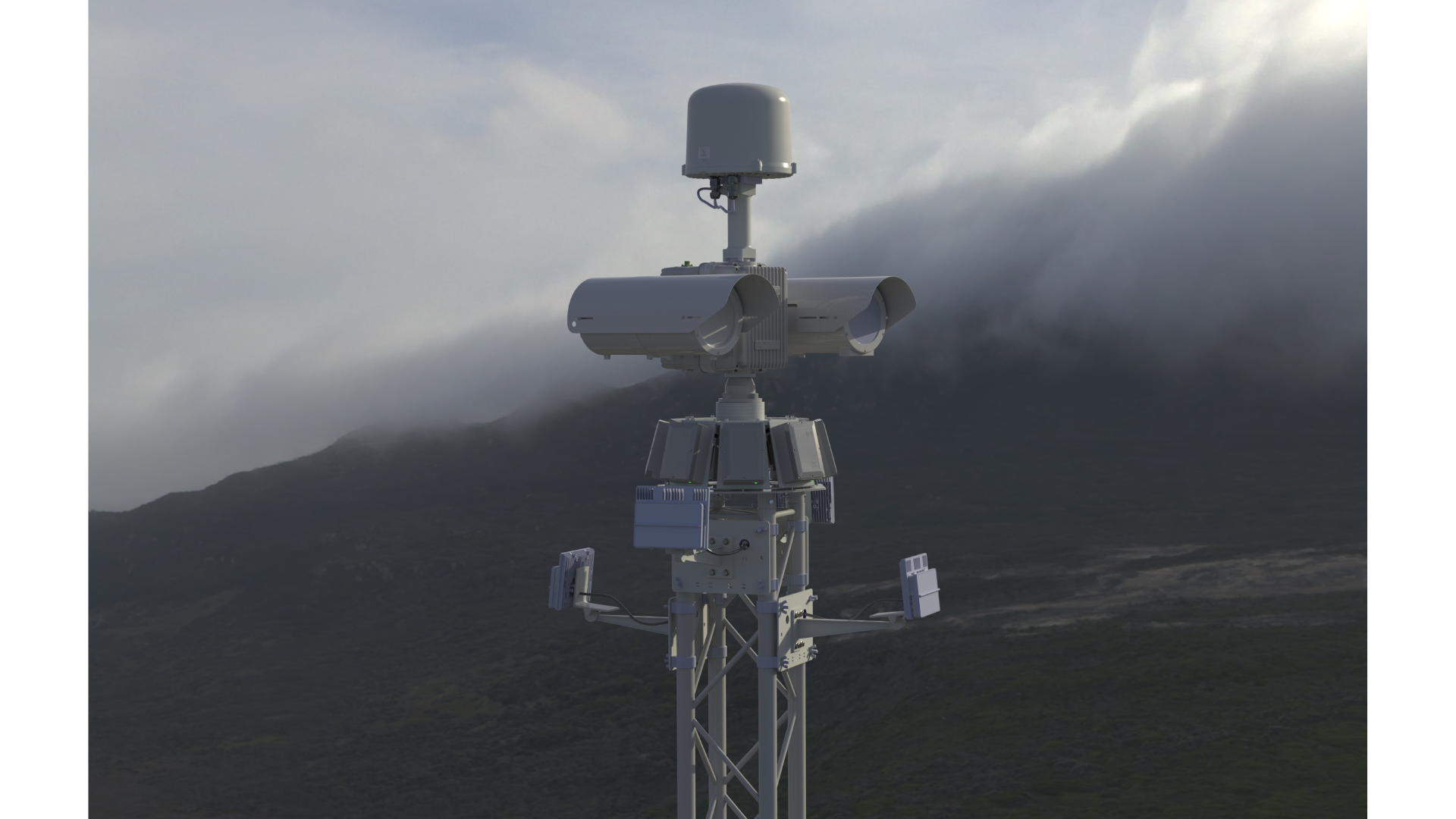

Wolfpack is suited as a portable solution mounted on vehicles or sea vessels etc. as well as for stationary installations such as perimeter protection at governmental buildings, prisons, military camps etc.

Talk to one of our experts

Extreme Temperatures

Extended Range Detection

Waterproof Protected

Continuous Updated

Alarm Provides

Directional Antennas

Capability & Features

Effortless Drone Detection with Plug-and-Play Simplicity and 360° Coverage

The Wolfpack was designed with operational focus and simplicity in mind, it is simple to configure, and easy to setup. It is literally a plug and play design and the end-user will be operational within minutes, which makes it ideal as a portable RF-detection solution. The 360° coverage and intelligent signal analysis helps to detect the threat direction, make and model of drones. As a standalone unit, it detects drones in larger areas and enables triangulation with the use of 3 Wolfpacks.

Easy Setup and Seamless Security Connection

All the information detected is displayed on our user–friendly interface IRIS. Wolfpack is also easy to interface with existing security infrastructure, through our plug-and-play user interface. It has a low false alarm rate – and requires only 2 cables.

Rugged, Lightweight, and Versatile

Wolfpack with its ruggedized and lightweight design makes installations on vehicles, buildings, or tripods easy and straight forward. Its Size, Weight and Power provide a competitive edge on the market of portable drone detection and tracking systems. New feature updates are made available on a regular basis and are driven by customer feedback.

Specifications

TECHNICAL FEATURES

Weight	5 kg
Dimensions (D x W x H)	315 x 315 x 260 mm
Detection range	Up to 10 km – Depending on RF environment & line of sight
Detection time	< 10 sec
Frequency ranges	(Detection) 433 MHz, 868 MHz, 915 MHz, 1.2 GHz – (Detection & Direction Finding) 2.4 GHz, 5.2 GHz, 5.8 GHz
Coverage angle (Horizontal)	360°
Coverage angle (Vertical)	90°
Accuracy of direction finding	5° RMS
IP rating	IP66
Power supply	36V Power supply
Power Consumption	40W
Operating temperatures	-30°C to +60°C / (-22°F to +140°F)
Color	Grey, custom
