The Soldier Kit

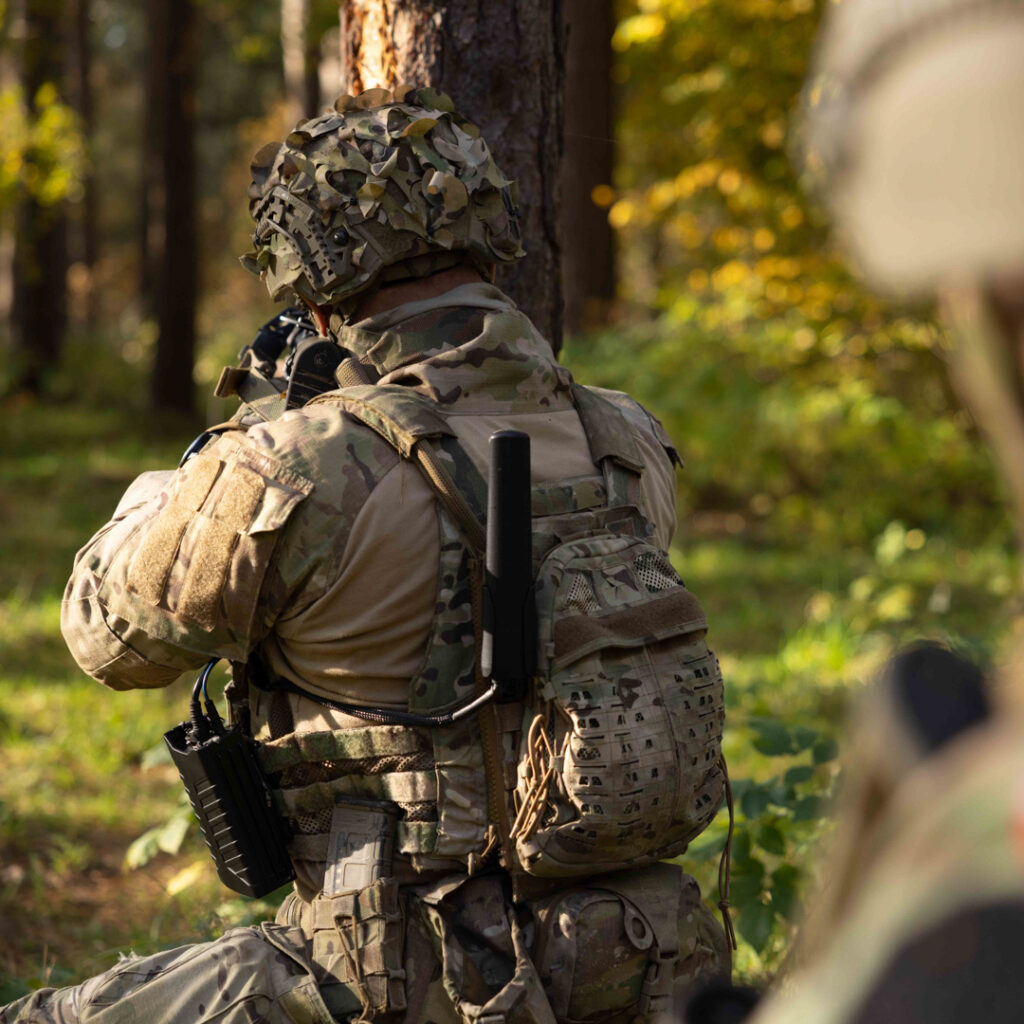

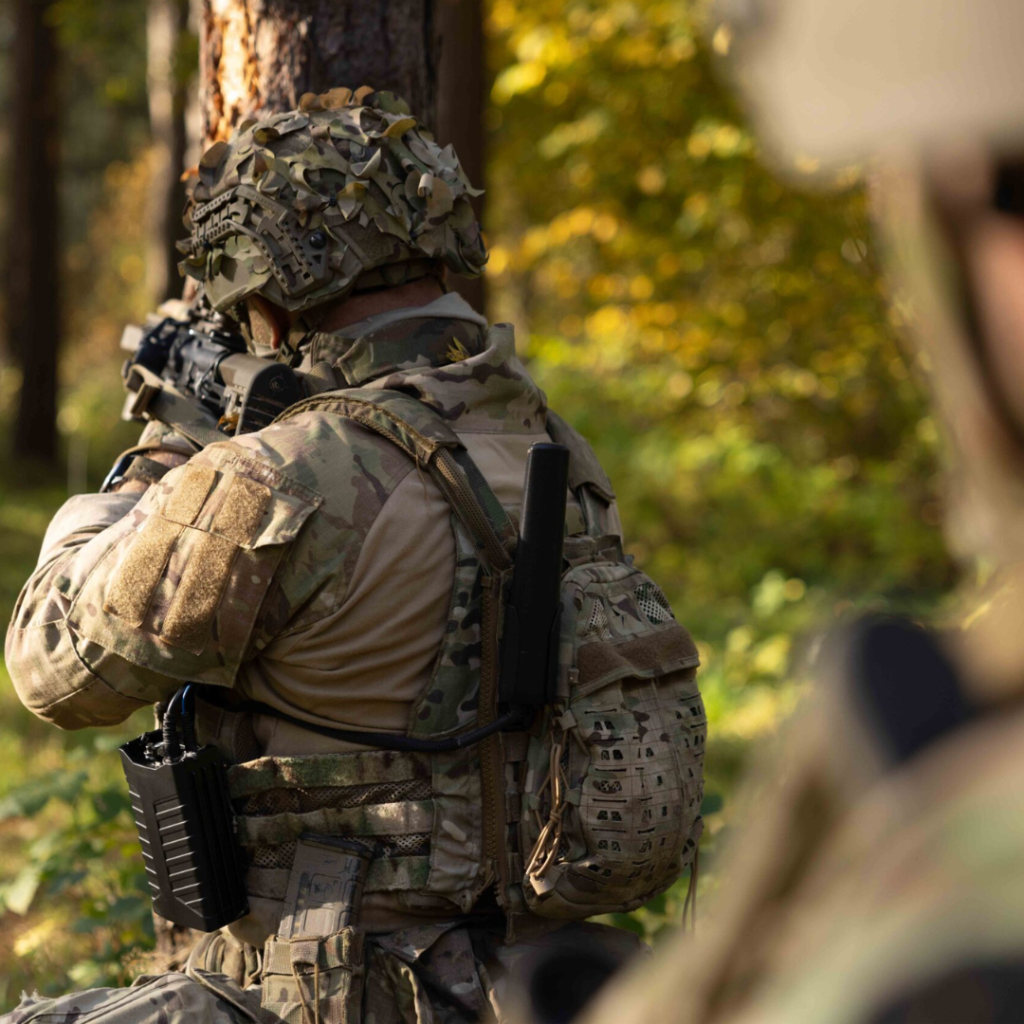

Our combat-proven wearable counter-UAS system equips soldiers with a complete set of tools needed to counter the evolving drone threat. Designed specifically for military and special operations forces, this comprehensive solution delivers exceptional detection and jamming capabilities tailored to the demands of the modern soldier. Engineered for rapid response, it integrates detection and neutralisation into a single lightweight package, ensuring threats are managed effectively before they escalate.
Key Features
- Quickly find and track radio frequency signals.
- The detector seamlessly coordinates with the jammer, automatically signaling when action is needed, allowing you to stay focused on the mission.
- Share sensor data, analyze RF environments with the Spectrum Analyzer in the MyDefence ATAK plugin, and stay updated for enhanced situational awareness.
- Packs high performance into two devices weighing just 2.5 kg (5.5 lbs) in total weight, keeping you mobile and agile.
User-Friendly
Passive Detection
Disrupt Signals
Waterproof – IP67
Low SWaP
Software Field Upgrades
Rapid Deployment in an Ultra-Light Package
Designed for ease of use and mobility, the system delivers out-of-the-box functionality for immediate drone detection and mitigation – all in a compact 2.5 kg (5.5 lbs) form factor that ensures agility without sacrificing performance.
Full Spectrum Drone Detection
Using the Wideband XF Antenna, the system delivers passive RF sensing across 200 MHz – 6 GHz with full 360° environmental coverage, enabling silent and undetectable operation.
Enhanced Situational Awareness
Connects with ATAK to share sensor data and keep units informed in real time. The MyDefence ATAK plugin enhances situational awareness with multiple capabilities, including a built-in Spectrum Analyzer for RF environment analysis.
Features
Wearable Drone Detection
- Optimized for single-operator use with minimal physical strain.
- Passive RF sensing across 200 MHz to 6 GHz for undetectable operation.
- Detection in under 10 seconds with a range up to 6 km / 3.73 miles.
- Continuous scanning and direction finding with ±30° accuracy.
- Delivers immediate sound, light, and haptic alerts on drone threats.
Targeted Mitigation
- Jams control, video, and navigation signals across a wide range of frequencies.
- Capability to disrupt GNSS satellite navigation signals.
Ease of Use & Seamless Operation
- Ready to use instantly. Its user-friendly, portable design integrates seamlessly into operational workflows, allowing soldiers in intense combat to stay focused on their primary tasks.
Operating Time
- NATO-standard military-grade battery and optimized power consumption design provides 10+ hours of continuous operation.
- Rechargeable lithium-ion battery with quick-release and reload operation.
Low Size, Weight and Power
- Packs high performance into two devices weighing just 2.5 kg (5.5 lbs) in total weight, keeping you mobile and agile.
Specifications – Wingman 103
Unit Weight
- 1100g / 39 oz.
User Feedback
- Sound, light, haptic
Dimensions
- 244 x 96 x 54 mm / 9.6 x 3.8 x 2.13 in. (excluding antenna & attachable battery)
Operating Time
- 14 hours (Without Wideband XF Antenna)
10 hours (With Wideband XF Antenna)
Color
- Desert / Black
Detection Capabilities
Detection Frequency Bands
- 2.4, 5.2, 5.8 GHz (Without Antenna)
- 200 MHz to 6 GHZ – Full Spectrum (With Wideband XF Antenna)
Detection Coverage Angle
- Horizontal 90º and 90º Vertical (Without Antenna)
- Omnidirectional 360º (With Wideband XF Antenna)
Detection Range
- Up to 6 km / 3.73 miles (depending on the RF enviroment & line of sight)
Detection Time
- < 10s (depending on the RF enviroment & line of sight)
Enviroment
Operating Temperature
- -30º to +65º C / -25.6ºF to 149ºF
Ingress Protection
- Rated to IP67
Battery & Power
Features
- Rechargeable lithium-ion battery, quick release and reload.
Compliance
- NATO-standard military grade battery
Battery Weight
380g / 0.83lbs
Battery Dimensions
71 x 41 x 86 mm / 2.8 x 1.6 x 3.4 in
Battery Charging Time
- 1-2 hours
Specifications – Wingman 105
Unit Weight
- 840g / 30 oz.
User Feedback
- Sound, light, haptic
Dimensions
- 154 x 90 x 60 mm / 6.6 x 3.4 x 2.3 in. (excluding antenna)
Operating Time
- 7 hours (Without Wideband XF Antenna)
6 hours (With Wideband XF Antenna)
Color
- Desert / Black
Detection Capabilities
Detection Frequency Bands
- 2.4, 5.2, 5.8 GHz (Without Antenna)
- 200 MHz to 6 GHZ – Full Spectrum (With Wideband XF Antenna)
Detection Coverage Angle
- Horizontal 90º and 90º Vertical (Without Antenna)
- Omnidirectional 360º (With Wideband XF Antenna)
Detection Range
- Up to 6 km / 3.73 miles (depending on the RF enviroment & line of sight)
Detection Time
- < 10s (depending on the RF enviroment & line of sight)
Enviroment
Operating Temperature
- -30º to +65º C / -25.6ºF to 149ºF
Ingress Protection
- Rated to IP67
Battery & Power
Features
- Interal Rechargeable battery
Battery Charging Time
- 1-2 hours
Specifications – Pitbull 101
Unit Weight
- 1330 g / 47 oz.
User Feedback
- Light (LED)
Dimensions Including Battery
- 243 x 90 x 75 mm / 9.57 x 3.54 x 2.95 in.
Operating Time
- 20 hours in Standby Mode
2 hours in Continuous Active Mode
Color
- Desert / Black
Jamming Capabilities
Jamming Frequencies
- 1.6 GHz (GNNS), 2.4, 5.2 and 5.8 GHz
Jamming Coverage Angle
- Horizontal 60º / Vertical 60º
Jamming Ratio
- Up to 80% (depending on the RF enviroment & line of sight)
Enviroment
Operating Temperature
- -30º to +65º C / -25.6ºF to 149ºF
Ingress Protection
- Rated to IP67
Battery & Power
Features
- Rechargeable lithium-ion battery, quick release and reload.
Compliance
- NATO-standard military grade battery
Battery Weight
- 380g / 0.83lbs
Battery Dimensions
- 71 x 41 x 86 mm / 2.8 x 1.6 x 3.4 in
Battery Charging Time
- 1-2 hours
Gallery
Downloads
Download Datasheets
Soldier Kit – FAQ
What is the Soldier Kit?
The Soldier Kit is a wearable Counter-UAS solution designed for military and special operations forces, as well as law enforcement, security agencies, and critical infrastructure protection teams. It combines the Wingman drone detector and Pitbull drone jammer to deliver wearable drone detection and mitigation in a single lightweight package.
How does the Soldier Kit detect and counter drones?
The Wingman detects drone signals within 200 MHz to 6 GHz and can identify threats in under 10 seconds at ranges up to 6 km. The Pitbull neutralizes drones by jamming control, video, and GNSS navigation frequencies, preventing hostile UAVs from operating effectively.
What are the key features of the Soldier Kit?
The Soldier Kit provides full 360° detection coverage with the Wideband XF Antenna and integrates with ATAK for real-time data sharing and RF analysis. It delivers sound, light, and haptic alerts for immediate operator awareness, all while maintaining an ultra-light total weight of 2.5 kg for mobility and rapid deployment. Its rugged IP67 design ensures reliable performance in harsh environments.
How easy is the Soldier Kit to operate in the field?
The Soldier Kit is designed for rapid deployment and intuitive operation, requiring no complex setup or calibration. Its plug-and-play design allows soldiers to activate and use it instantly, even in high-pressure environments. The system provides automatic coordination between detection and jamming, allowing the operator to stay focused on the mission while the technology handles the threat response.
How does the Soldier Kit enhance situational awareness?
Through the MyDefence ATAK plugin, operators can share live sensor data, analyze RF environments using the Spectrum Analyzer, and coordinate actions across teams, improving overall mission awareness and response.
How durable and portable is the Soldier Kit system?
Weighing only 2.5 kg, the Soldier Kit is engineered for mobility and rugged use, operating effectively between -30°C and +65°C with an IP67 ingress protection rating. This ensures dependable performance in extreme and demanding conditions.
