Dobermann 360
RF Jammer for Area-wide
Drone Protection

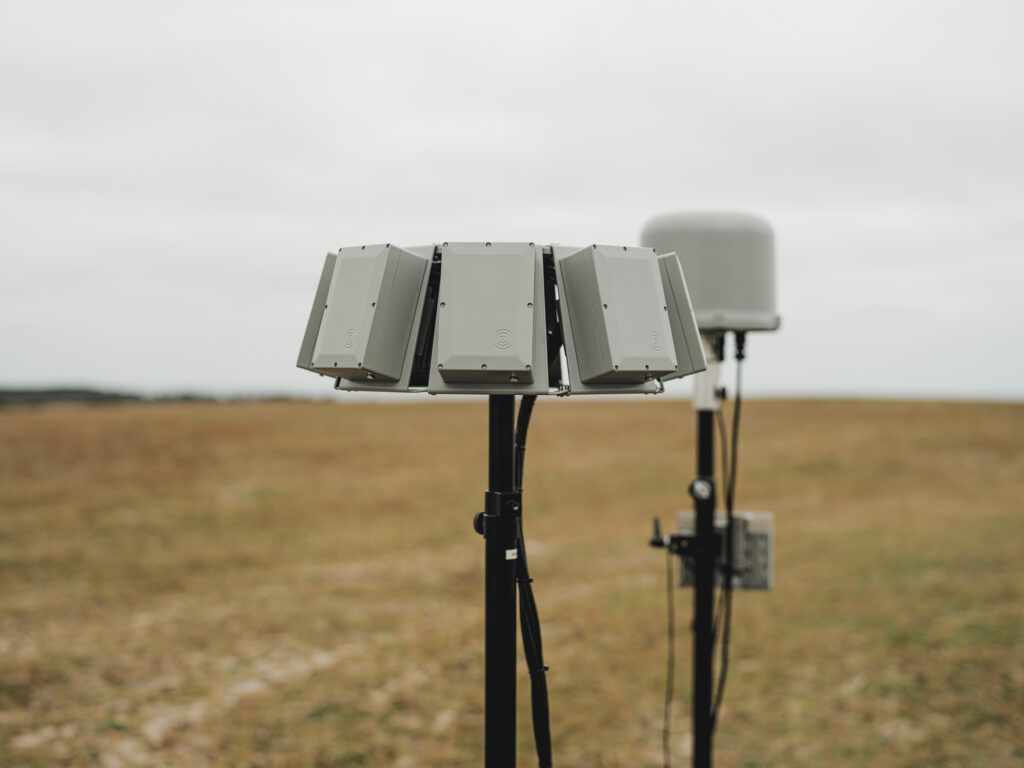

The Dobermann 360 is a 360° radio frequency jammer engineered for area-wide drone protection. This Counter UAS jammer is designed to safeguard perimeters from drone threats by actively disrupting RF signals between drones and their operators. With advanced networked capabilities, Dobermann 360 delivers comprehensive drone mitigation, making it ideal for high-security locations or quick deployable sites in need of robust anti-drone measures.
360° Jamming
Waterproff – IP67
Quick Deployable
Multi-layered Approach
360° Jamming Coverage
Reliable, all-round jamming that moves with your mission – tripod-ready for mobile ops or designed for fixed deployments.
Multi-layered Approach
The Dobermann 360 jammer integrates with detectors, radars, cameras, and other sensors for a multi-layered setup.
Collaborative Jamming
Operates with low power individually but combines with other units to create a high-power jamming field, maximizing efficiency while minimizing collateral interference.
Features
Durable Design
- Engineered to withstand harsh conditions with IP67 ingress protection.
Flexible Operational Modes
- Includes manual mode for operator-controlled engagement. Semi-automatic and autonomous modes can be activated automatically upon detecting a threat.
Targeted Mitigation
- Jams control, video, and navigation signals across a wide range of frequencies.
- Capability to disrupt GNSS satellite navigation signals.
Flexible Deployment
- Can be mounted on a tripod or integrated into forward operating missions or fixed installations.
Specifications – Dobermann 360
Dobermann 360
Unit Weight
- 14,7 kg / 32.4 lbs.
Mounting
- Tripod or mast.
Dimensions
- 700 x 700 x 310 mm / 27.56 x 27.56 x 12.21 in.
Color
- Grey
Jamming Capabilities
Jamming Frequencies
- 1.6 GHz (GNNS), 2.4, 5.2 and 5.8 GHz
Jamming Coverage Angle
- Horizontal 360º / Vertical 90º
Jamming Ratio
- Up to 80% (depending on the RF enviroment & line of sight)
Enviroment
Operating Temperature
- -30º to +65º C / -22ºF to 149ºF
Ingress Protection
- Rated to IP67
Power & Communication
Power Supply & Comsumption
- Power over Ethernet (PoE), < 25 W
Power Comsumption
- 200 W
Communication Interfaces
- Ethernet
API for Software Integration
Argos Server software to Iris UI and other Situational Awareness Systems
