ONE OF THE WORLD’S MOST ADVANCED
WEARABLE
DRONE DETECTORS
JUST GOT SMARTER
Wingman Edge puts AI-powered RF Spectrum Intelligence directly on the frontline. Detecting known threats, identifying the unknown and giving soldiers the edge before the threat does.
Powered by MyDefence Spectrum Intelligence
LIGHTER
ON DEVICE
KNOWN & UNKNOWN
THE FRONTLINE
Every Gram Counts.
LIGHTER THAN PREVIOUS GENERATION
Winning the advantage requires more than detecting activity. It requires turning the right signals into faster understanding, sharper decisions and earlier action.
AI-Powered Classification
Combines signature-based detection with AI-enabled classification to identify RF activity beyond known signatures.
Passive Wideband Awareness
Continuously monitors the spectrum for RF activity while enabling operators to remain undetected.
Analog Video Detection
Detects analog video transmissions for increased awareness of video-enabled RF activity.
Connected Intelligence
Shares detections and spectrum data through ATAK and Nett Warrior, extending awareness from the individual operator to the wider team while creating a secure foundation for richer data sharing and future software capabilities.
BUILT FOR THE WARFIGHTER
BATTLES ARE WON
AT THE EDGE
POWERED BY
MyDefence
Spectrum Intelligence
MyDefence Spectrum Intelligence is the software foundation across our capabilities, unifying existing software solutions, extending new intelligence capabilities to products already in the field, and providing the platform for future development and continued spectrum dominance.
In Wingman Edge, this intelligence layer combines continuous wideband scanning with AI-powered classification to identify relevant RF activity beyond known signatures and reduce detection gaps across the electromagnetic spectrum. This gives operators a broader understanding of both known and emerging threats while allowing the capability to evolve as the RF environment changes.
AI-POWERED RF SPECTRUM INTELLIGENCE AT THE TACTICAL EDGE
From Individual Awareness
to a Shared Tactical Picture.
Each Wingman Edge contributes what it sees. Together, they create a shared, real-time picture of RF activity on the frontline.
Connected Intelligence
Wingman Edge
Processes spectrum and classifies signals in real time
Nett warrior
Nett Warrior supports tactical data movement.
Mobile device
Displays alerts and intelligence directly to operators
TAK network
Shares threat intelligence across connected units instantly
Iris / c2
Connects sensor data into one operational picture
A DATA-CENTRIC DEVICE FOR THE FUTURE.

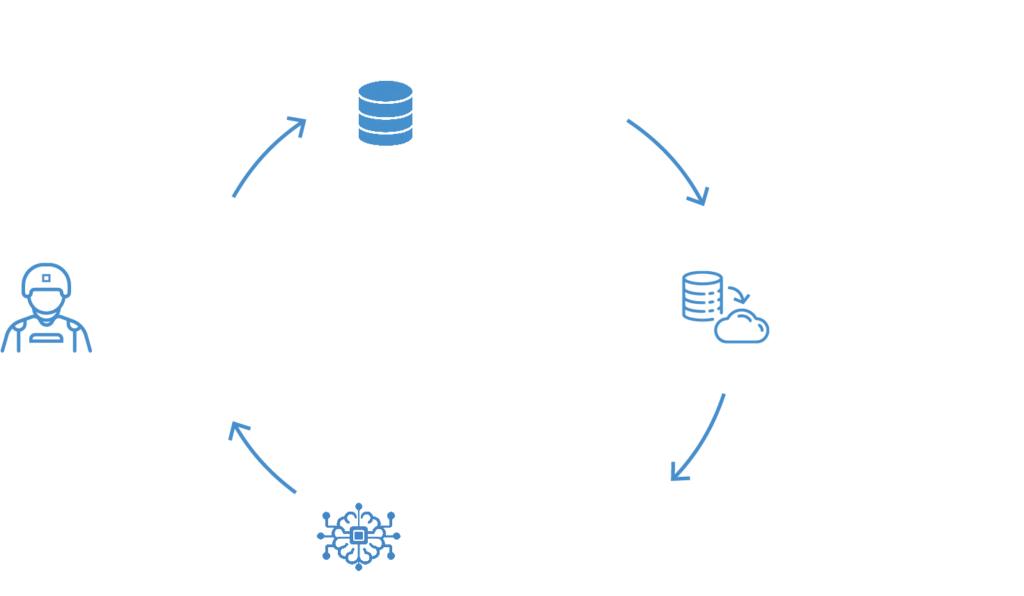

The Intelligence Loop
Features
DETECTION & INTELLIGENCE
- AI-powered classification beyond known signatures
- Passive RF detection without transmitting
- Continuous wideband scanning from 200 MHz to 6 GHz
- Up to 6 km / 3.73 mi detection range*
- Sound, light, haptic and display alerts
OPERATOR EXPERIENCE
- Pull-turn mode selector
- Transflective display
- Normal and night vision backlight modes
- Glove-friendly operation
CONNECTED INTELLIGENCE
- Nett Warrior connectivity
- USB interface
- ATAK integration
- Two external antenna interfaces
Mission-Ready Design
- IP67
- -35°C to 65°C / -31°F to 149°F
- Ranger Green / Desert
- External military-grade battery

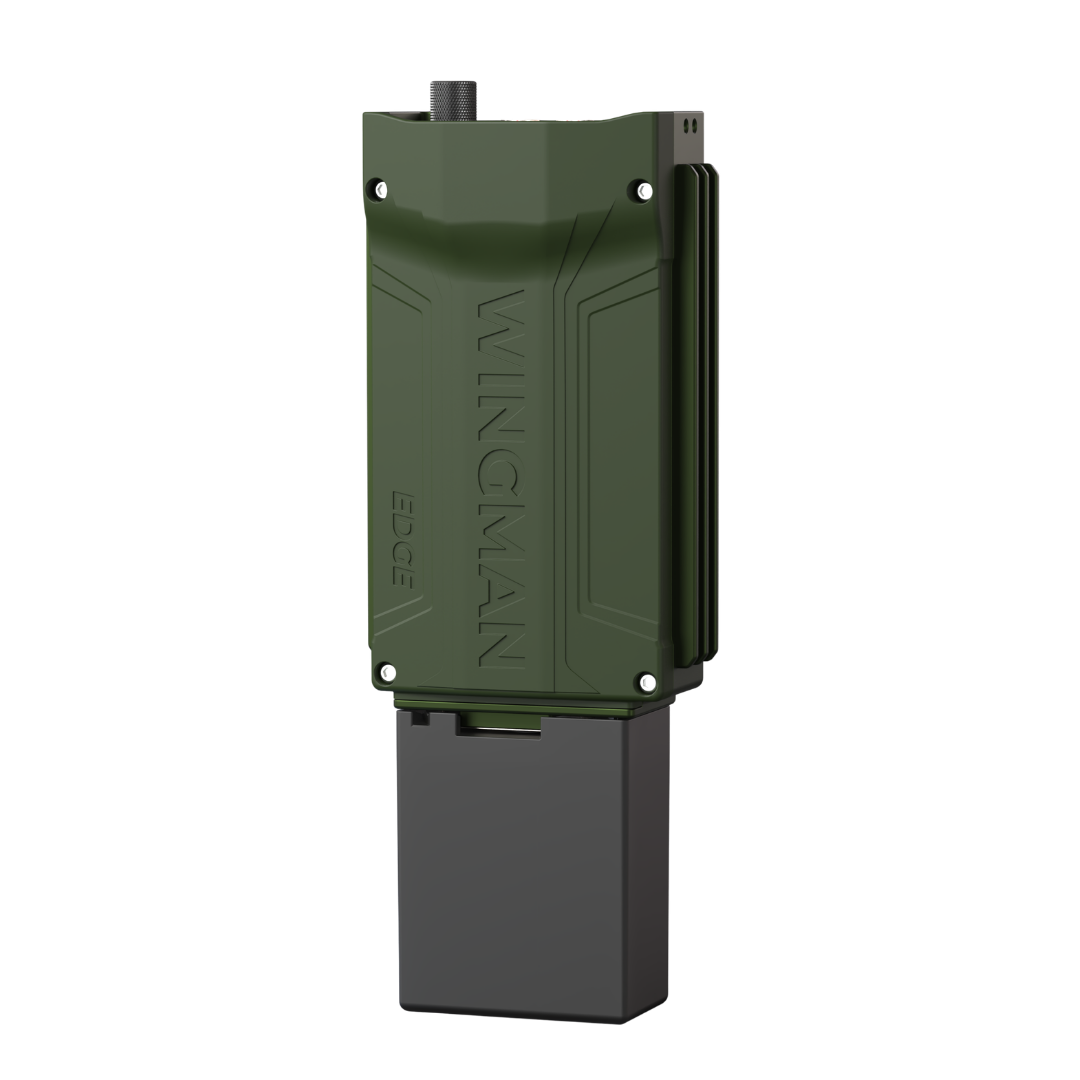

Specifications – Wingman Edge
System
Unit Weight
- 975g / 2.15 lbs. with battery
- 595g / 1.31 lbs. without battery
Dimensions
- 246 x 92 x 46 mm / 9.69 x 3.62 x 1.81 in. (including external battery)
Color
- Ranger Green / Desert
User Feedback
- Sound, light, haptic, display
HMI
- Pull-turn mode selector
- Transflective display with normal and night vision backlight mode
Detection & RF
Detection Range
- Up to 6 km / 3.73 miles* (*depending on the RF enviroment & line of sight)
Detection Time
- < 10s* (*depending on the RF enviroment & line of sight)
Detection Frequency Bands
- 200 MHz to 6 GHZ – (With Wideband XF Antenna)
- 2.4, 5.2, 5.8 GHz (Internal bands)
Coverage with Wideband XF
- Omnidirectional 360º
External Antenna Interfaces
- 2 external antenna connections for flexible configurations
Power, Connectivity & Enviroment
Battery Life
- 14 hours (Without Wideband XF Antenna)
10 hours (With Wideband XF Antenna)
Power Supply
- External AN/PRC-148/152 battery
Operating Temperature
- -35º to +65º C / -31ºF to 149ºF
Interfaces
- Nett Warrior
- USB-interface
- ATAK
Ingress Protection
- IP67
Request Information
Every Sensor Strengthens the Picture
Wingman Edge is part of MyDefence’s broader approach to AI-powered RF Spectrum Intelligence, turning RF activity into usable insight closer to the operator.
