PITBULL
Drone Jammer
A Wearable Drone Jamming Device
The Pitbull is a lightweight, wearable RF jammer that neutralizes drone threats once detected by the Wingman. Specifically designed for dismounted troops, special forces, and security teams on foot, it disrupts both drone control signals and GNSS navigation signals, providing comprehensive jamming coverage. It offers up to 1000 meters of jamming range and supports both manual operation and automatic activation triggered by the Wingman. Weighing only 1330 g including battery, the Pitbull is user-friendly and intuitive, requiring minimal training. Fully integrated with ATAK, allowing the Pitbull to be remotely controlled and share jamming data in real time for better team coordination and mission success.
Extreme Temperatures
Waterproof – IP67
Updated Continuously
Disrupt Signals
Handsfree Operations
Enhanced Disruption Functionality
Built for harsh environments. Compact, precise, and safe for the operator. Forces UAS to land or return to its remote controller or starting point.
Ease of Use & Seamless Operation
Instantly deployable and user-friendly. Integrates with ATAK and Wingman for automatic, semi-auto, or manual engagement upon drone detection.
Collaborative Jamming
Operates with low power individually but combines with other units to create a high-power jamming field, maximizing efficiency while minimizing collateral interference.
Features
Ease of Use & Seamless Operation
- Ready to use instantly. Its user-friendly, portable design integrates seamlessly into operational workflows, allowing soldiers in intense combat to stay focused on their primary tasks.
Flexible Operational Modes
- Includes manual mode for operator-controlled engagement. Semi-automatic and autonomous modes can be activated automatically upon detecting a threat, which can also be triggered through ATAK or automatically by the Wingman upon drone detection.
Targeted Mitigation
- Jams control, video, and navigation signals across a wide range of frequencies.
- Capability to disrupt GNSS satellite navigation signals.
Low Size, Weight and Power
- Compact size (243 x 90 x 75 mm / 9.57 x 3.54 x 2.95 in) and lightweight (1300 g /47 oz) for easy wear.
Specifications – Pitbull 101
Pitbull 101
Unit Weight
- 1330 g / 47 oz.
User Feedback
- Light (LED)
Dimensions Including Battery
- 243 x 90 x 75 mm / 9.57 x 3.54 x 2.95 in.
Operating Time
- 20 hours in Standby Mode
2 hours in Continuous Active Mode
Color
- Desert / Black
Jamming Capabilities
Jamming Frequencies
- 1.6 GHz (GNNS), 2.4, 5.2 and 5.8 GHz
Jamming Coverage Angle
- Horizontal 60º / Vertical 60º
Jamming Ratio
- Up to 80% (depending on the RF enviroment & line of sight)
Enviroment
Operating Temperature
- -30º to +65º C / -25.6ºF to 149ºF
Ingress Protection
- Rated to IP67
Battery & Power
Features
- Rechargeable lithium-ion battery, quick release and reload.
Compliance
- NATO-standard military grade battery
Battery Weight
- 380g / 0.83lbs
Battery Dimensions
- 71 x 41 x 86 mm / 2.8 x 1.6 x 3.4 in
Battery Charging Time
- 1-2 hours
Gallery
Capability & Features
Versatile Jammer for Mission Focused Defense
With its ruggedized exterior, and weighing only 1330 grams, the Pitbull 101 jammers are a versatile platform, that allows its user to focus on the mission. The Pitbull series works together with the Wingman series of drone detector alarms, making a complete detect-and-defeat solution to mitigate the threat of malicious drones. Pitbull 101 is with GNSS.
Autonomous or Manual Operation for Maximum Flexibility
The Pitbull 101 are designed to function either autonomously or manually, and the internal directional antennas cover the 2.4GHz, 5.2GHz, 5.8GHz and 1.6GHz (GNSS) frequency bands. With its directional antennas, the Pitbull 101 can jam an unauthorized drone at the distance of 1000 meters.
Seamless Integration with Wingman for Automatic Threat Mitigation
It can work as a stand-alone device. In manual mode, the Pitbull 101 will constantly jam the desired frequency to deny any malicious drones access to the airspace. In autonomous mode, Pitbull 101 can work together with the Wingman-series of drone detector alarms and automatically jam the control signal, when a malicious drone is detected.
User-Friendly, Lightweight, and Ready to Deploy

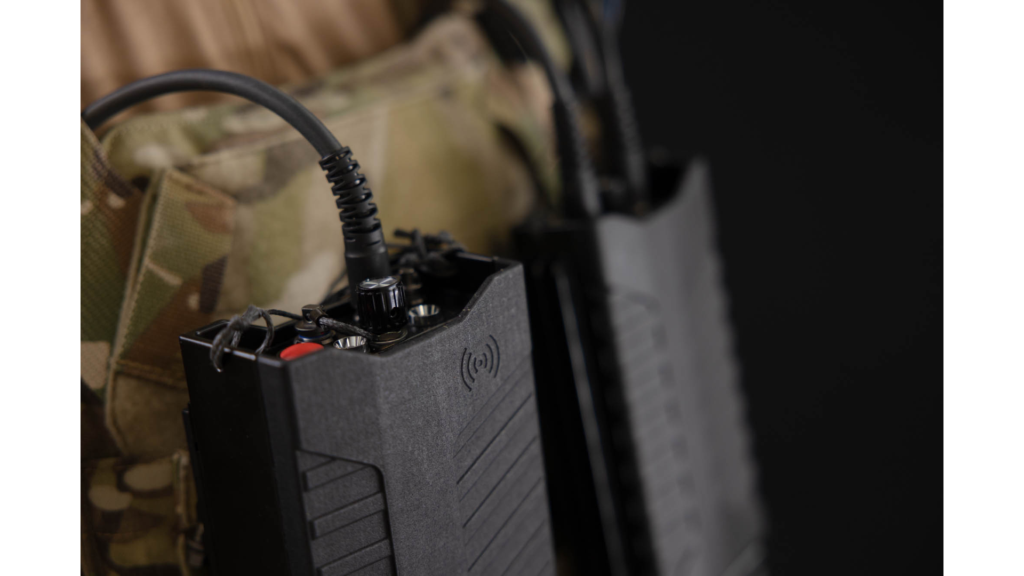

The Pitbull series is designed to reduce the cognitive load of its operator, allowing the user to focus on the mission. It has an external battery, which has a 2-hour operational battery life, when set in continuous jamming mode. It works directly out of the box, is very easy to operate and requires little to no training. The software-based jammer will continuously be updated to constantly refine and better the performance of the jammer.
Compact and Portable Design for Tactical Use

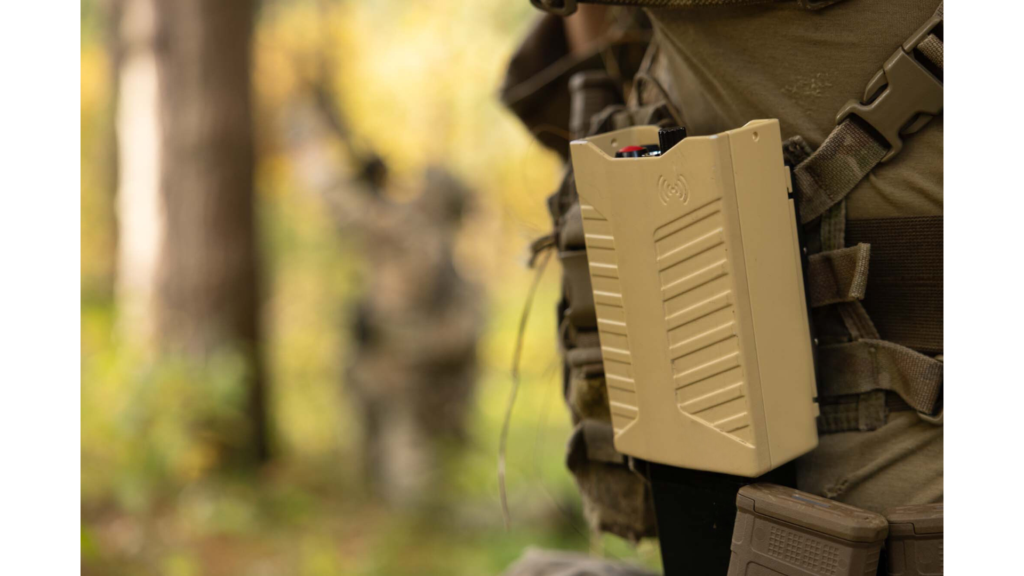

The Pitbull 101 can be carried on the torso or on the outside of clothes to optimize performance (e.g. tactical vest) using the MOLLE straps. Its low weight and small form factor allow each user to carry a personal Pitbull as an active countermeasure against the potential threat breaching the perimeter of airspace above.
