Boxer
Drone Jammer
The Boxer is a high-power, multi-band RF jammer engineered to deliver robust and adaptable electronic countermeasure capabilities across a wide range of operational environments. Built on a modular and scalable architecture, it supports broad frequency coverage and configurable antenna setups, enabling seamless adaptation to mission-specific requirements.
Featuring intuitive controls, rapid deployment, and integrated system diagnostics, the Boxer simplifies operation while providing real-time system status and performance monitoring. Ethernet connectivity enables seamless integration into existing electronic warfare and C2 systems, making it suitable for perimeter, vehicle-mounted, and remote deployment applications.
High Power Effect
Multi Band Dominance
360° Protection
Fast System Integration
420 MHz to 5.8 GHz
The drone threat is evolving. Multi-band jamming keeps you ahead with reliable protection.
Up to 100 W Output Power
This is not deterrence. This is effect – high-power
RF jamming built to stop hostile UAS.
360° or Directional Coverage
Secure the perimeter or focus firepower where it matters most. Your call.
Features
Flexible Operational Modes
- Includes manual mode for operator-controlled engagement. Semi-automatic and autonomous modes can be activated automatically upon detecting a threat.
Integration
- The Boxer integrate seamlessly with the MyDefence Situational Awareness System, Iris/Argos as well as third-party platforms through open API interfaces.
Targeted Mitigation
- Jams control, video, and navigation signals across 9 frequency bands at the same time.
- Capability to disrupt GNSS satellite navigation signals.
Multi-Domain Deployment

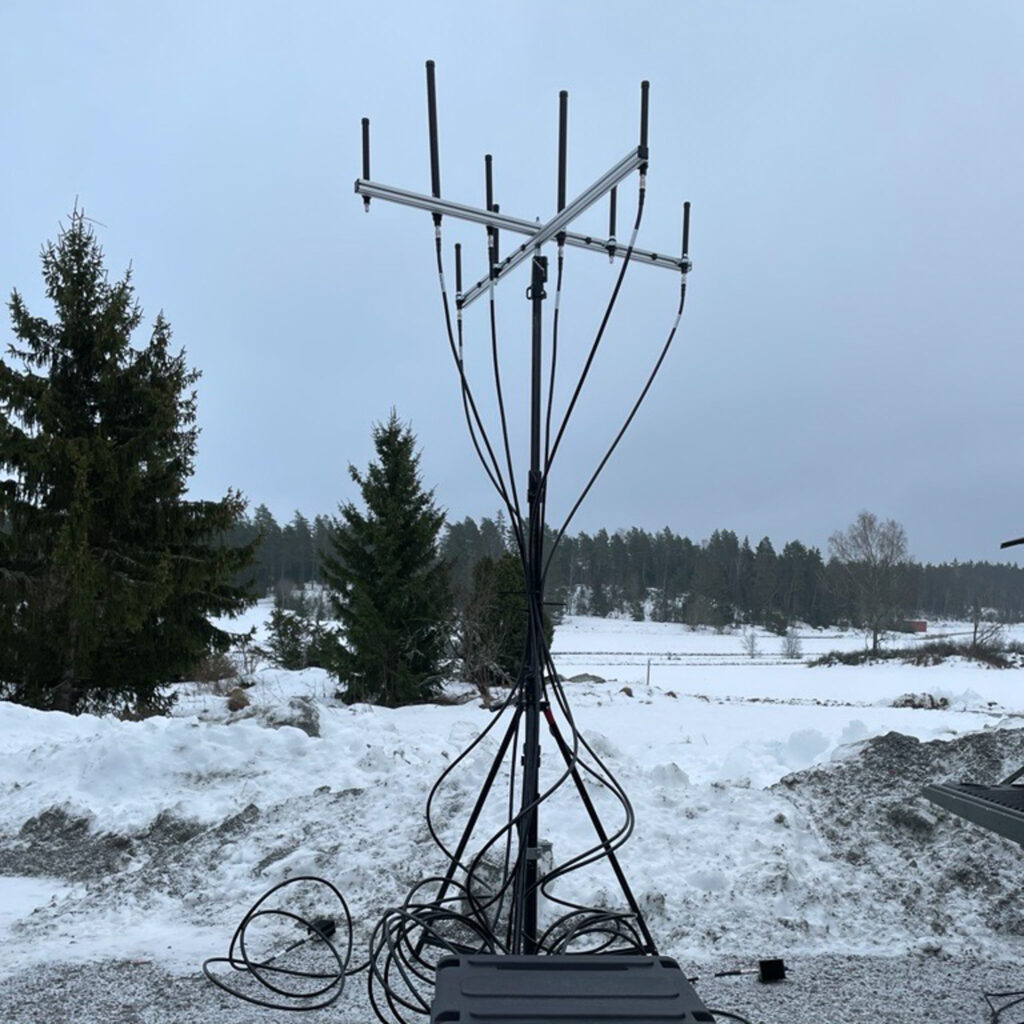

- Deploy Boxer where the mission demands it. Can be mounted on a tripod or integrated into forward operating missions or fixed installations.
Specifications – Boxer
RF Performance
| RF Outputs | 9 Antenna Ports |
| Jamming Range | Up to 10 km* (6.21 mi.) |
| RF Power | 50-100 W per band |
| Jamming Angle | 360 or directional depending on antenna configuration |
| Safety Distance during Active Jamming | ≥ 5 meters from nearest antenna |
* Depending on the RF environment, line of sight, type and height of antennas.
| Frequency Band / RF Path: | Frequency Range [MHz] | Max RF Power [W]: |
| Low-band RF path / UHF | 420-450 | 50 |
| Low-band RF path / GSM850 range | 850–900 | 50 |
| Low-band RF path / GSM900 range | 900–950 | 50 |
| L-band / GNSS RF path / L5-E5-B2 | 1164–1214 | 50 |
| L-band / GNSS RF path / L2-E6-B3 | 1215-1300 | 50 |
| L-band / GNSS RF path / L1-E1-B1 | 1559–1610 | 50 |
| S-band RF path / 2.4 GHz ISM-WLAN | 2390–2500 | 100 |
| C-band RF path / 5.2 GHz WLAN | 5150–5250 | 50 |
| C-band RF path / 5.8 GHz ISM-WLAN | 5725–5875 | 100 |
Mechanical Specifications
| Weight | 24 kg (52.9 lbs.) |
| Dimensions | 482 x 266 x 483 mm (18.98 x 10.47 x 19.02 in.) |

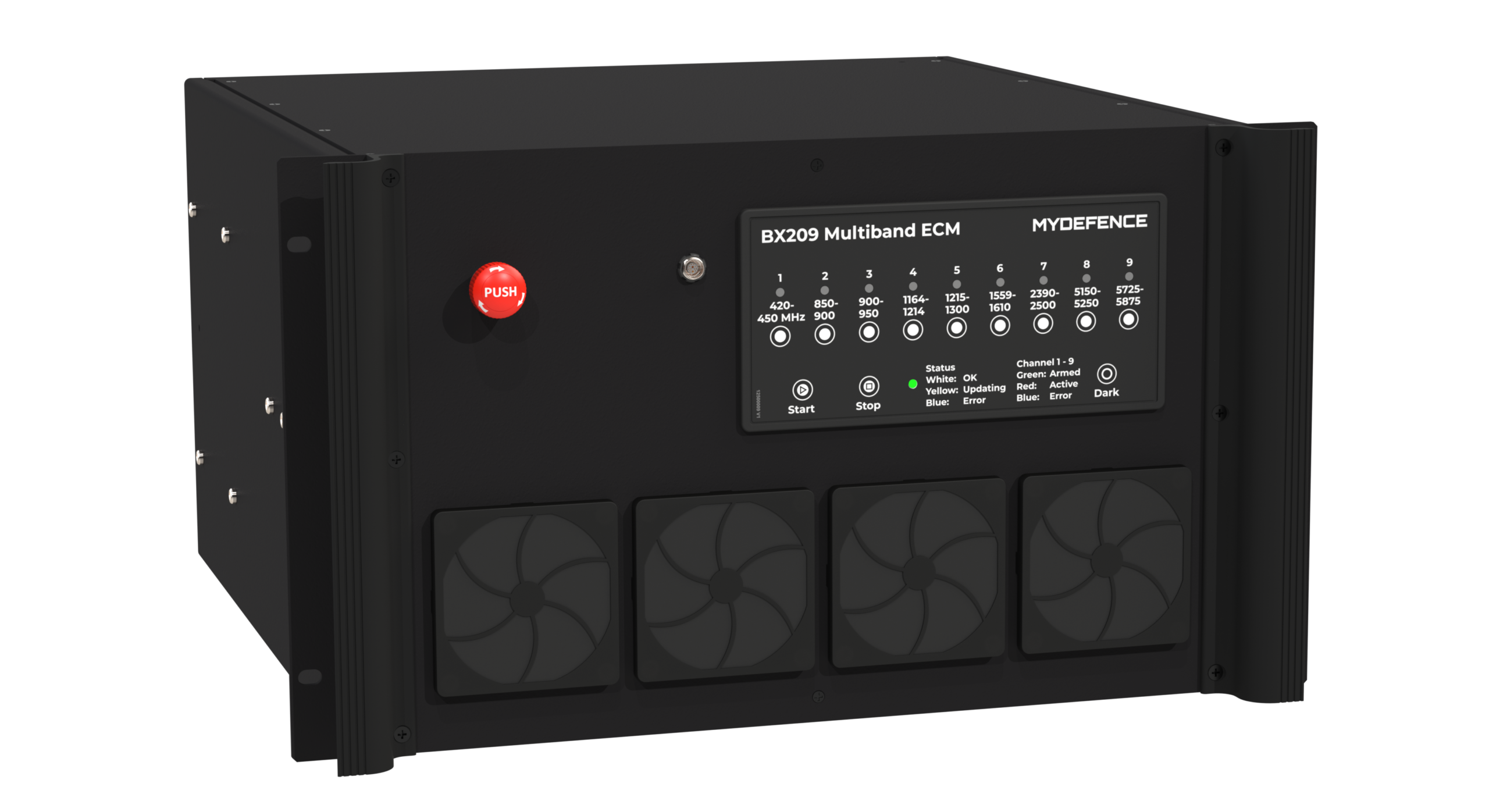

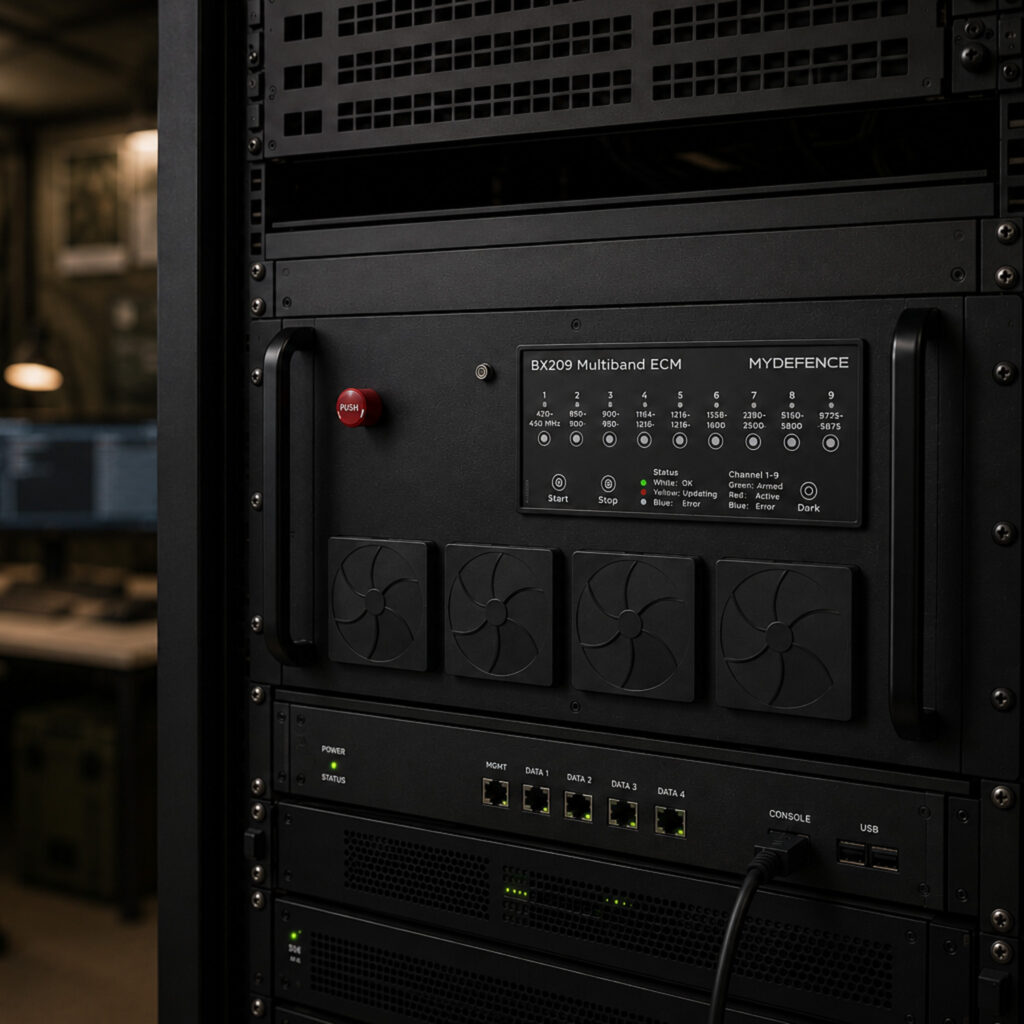

| Rack Integration | 6U 19” Rack |
| Operation Temperature | -20°C to +60°C (-4°F to 140°F) |
| Color | Black |
| IP Rating | IP21 |
System Integration
| Communication Interfaces | IRIS, ethernet, Local controle interface |
| Control by IRIS | Band selection, jamming start/stop, status |
| Input Power | 100-240 V |
| Power Consumption | 20 idle / 1500 W max |
| Software Integration | ARGOS Server API |
| Export Classification | ML11.b |
