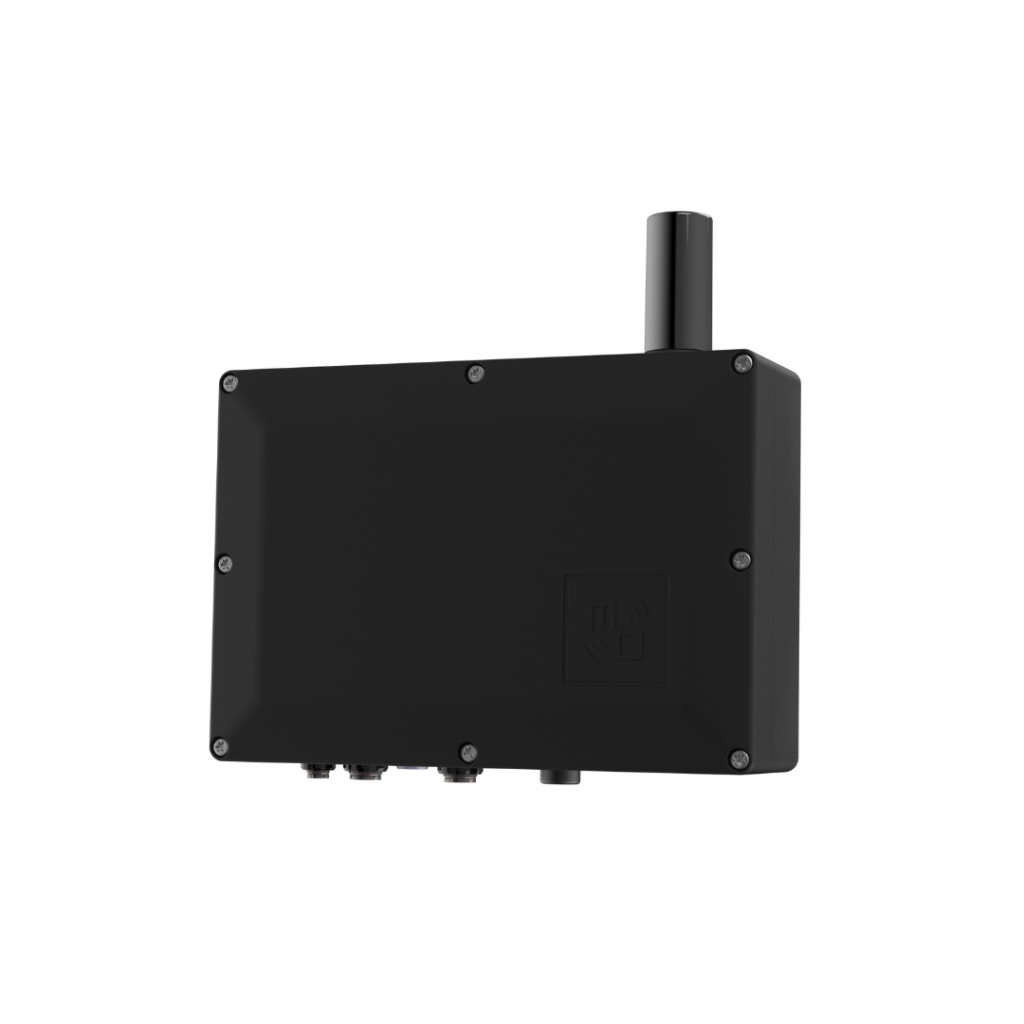

Watchdog 202
Drone Detector
Drone Detection for Perimeter Protection

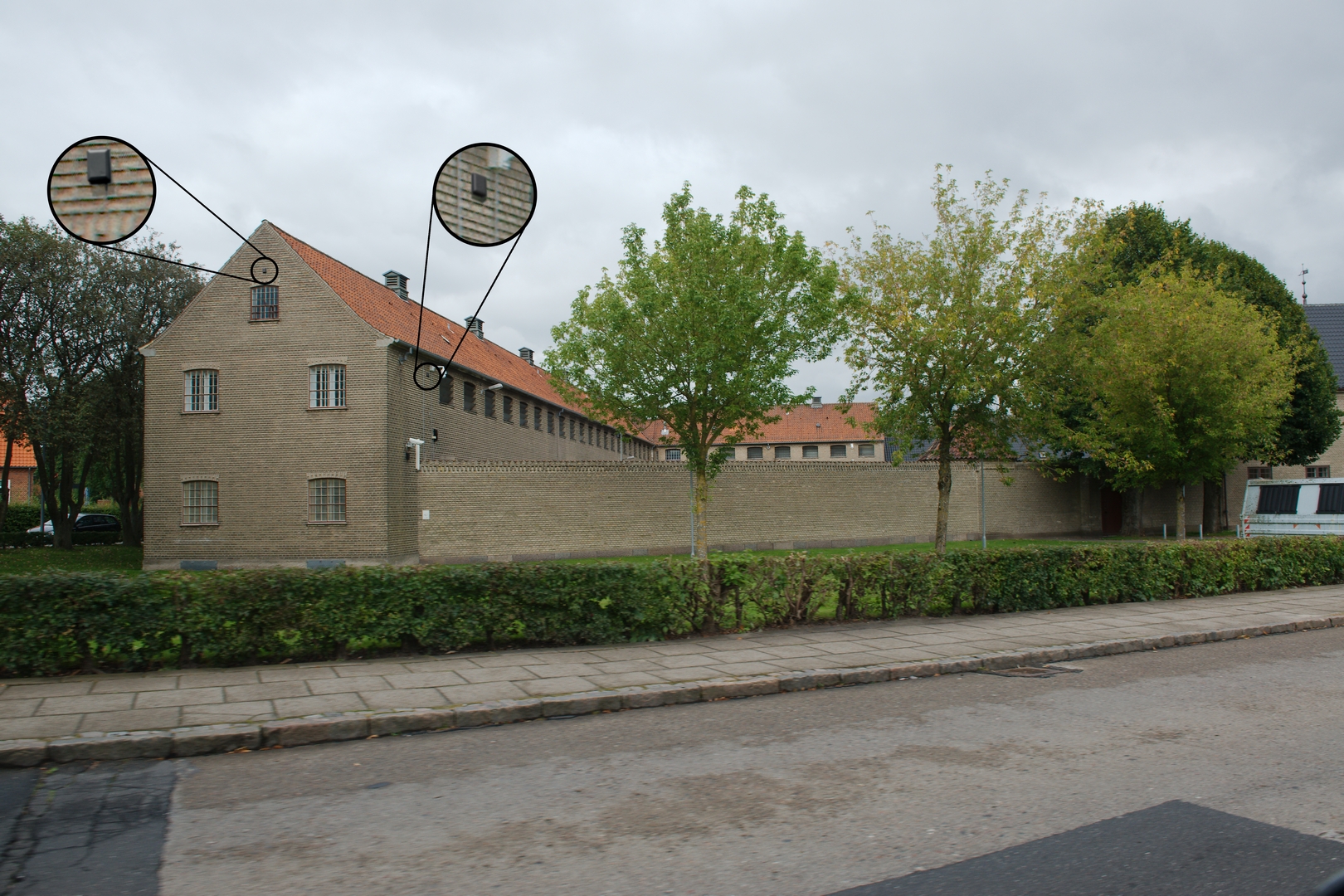

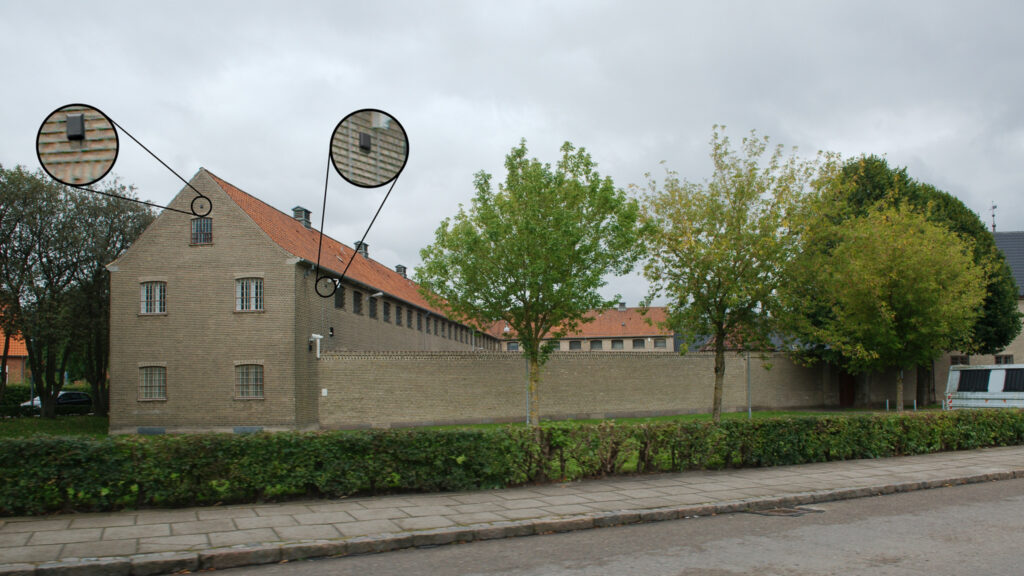

The Watchdog 202 is a compact, rugged radio frequency based device designed to detect drones and their controllers, ideal for fixed networked installations on masts or walls. The Watchdog 202, one of the smallest direction finding RF drone detectors, is perfect for stationary setups like perimeter protection at prisons or military camps and countering electronic warfare in critical infrastructure. A multi-modular setup enhances performance and extends frequency range.
Extreme Temperatures
Extended Range Detection
Waterproof – IP67
Alarms Provided
Software Field Upgrades
Vigilant Awareness
Purpose-built for fixed installations, Watchdog 202 provides continuous drone detection to maintain full situational control.
Compact & Versatile
Flexible installation allows detectors to be configured to match specific operational needs.
Scalable Collaboration
Works standalone or collaboratively, delivering perimeter protection and UAS triangulation for large areas.
Features
Wide-Area Monitoring
- Detection time is less than 10s and detection range is up to 10 km / 6.2 miles (Depending on the RF enviroment & line of sight).
Versatile Deployment
- Watchdog can be deployed on a permanent or temporary basis. It supports standalone installations, multi-site configurations for wider coverage and threat triangulation.
Ease of Use
- Optimized for single-operator use with minimal physical strain.
Low Size, Weight and Power
- Compact size (17,5 x 10 x 4,2 cm / 6.9 x 4 x 1.65 in.), lightweight (742 g /2.64 lbs) and Power over Ethernet (< 15 W).
Specifications – Watchdog 202
Watchdog 202
Unit Weight
- 742 g / 1.64 lbs.

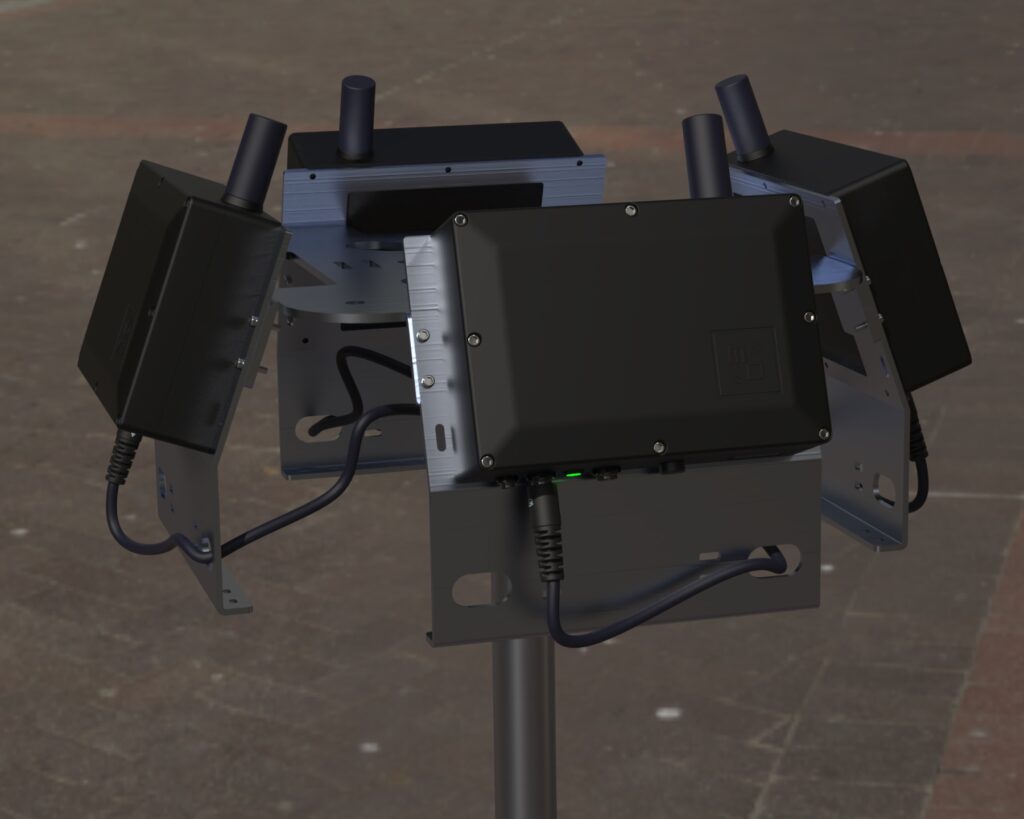

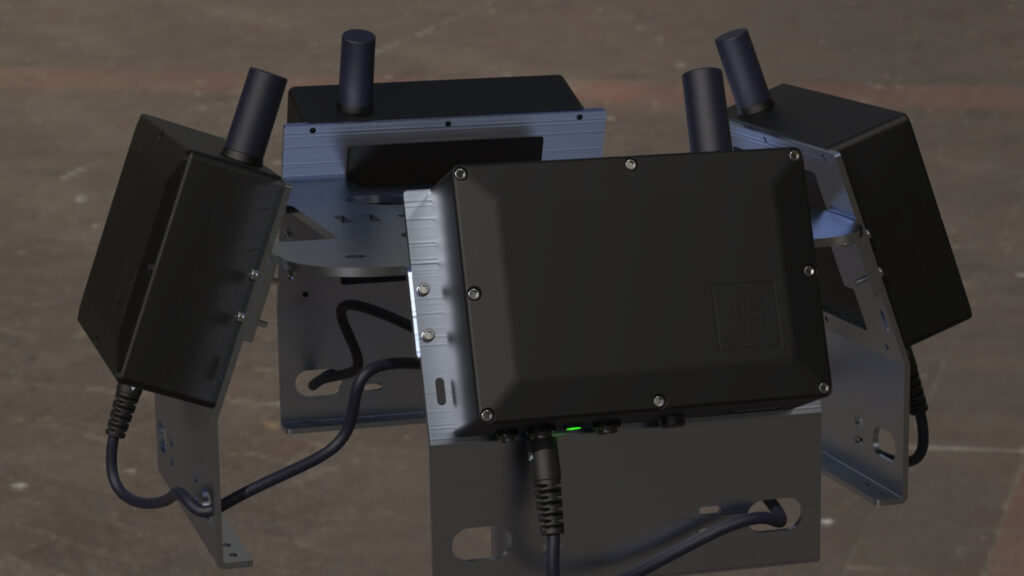

Mounting

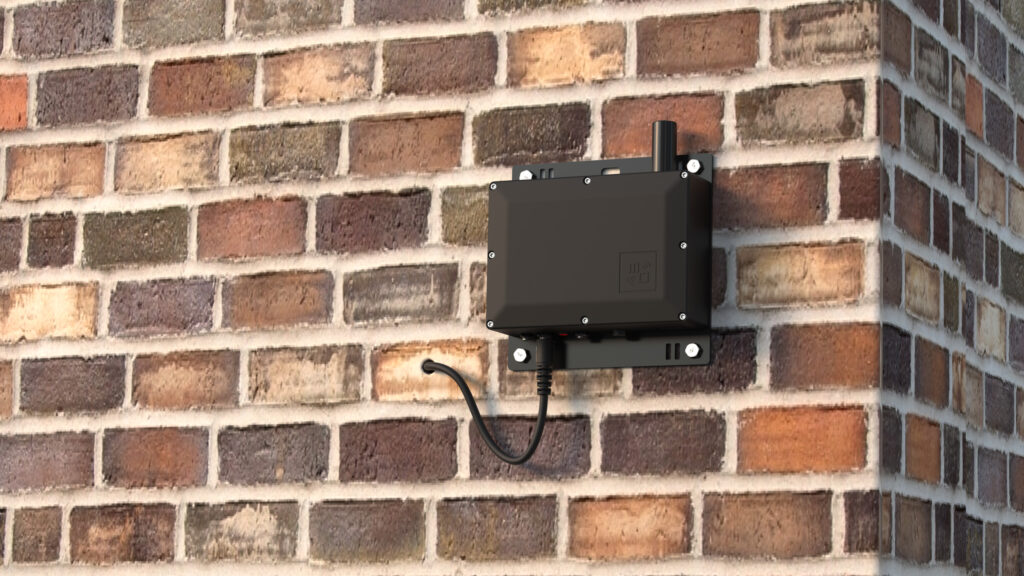

- Mast or walls for fixed installations.
Dimensions
- 17,5 x 10 x 4,2 cm / 6.9 x 4 x 1.65 in.
Color
- Black
Detection Capabilities
Detection Frequency Bands
- 2.4, 5.2 & 5.8 GHz.
- 433, 868, 915 MHz & 1.2, 2.4, 5.2 & 5.8 GHz. (With Antenna)
Detection Coverage Angle
- Horizontal 90º / Vertical 90º (Without Antenna)
Omnidirectional 360º (With Antenna)
Detection Range
- Up to 10 km / 6.2 miles (depending on the RF enviroment & line of sight)
Detection Time
- < 10s (depending on the RF enviroment & line of sight)
Direction Finding Accuracy
- 5º RMS accuracy (On 2.4, 5.2 and 5.8 GHz)
Enviroment
Operating Temperature
- -30º to +60º C / -25.6ºF to 140ºF
Ingress Protection
- Rated to IP67
Power & Communication
Power Supply & Comsumption
- Power over Ethernet (PoE), < 15 W
Communication Interfaces
- Ethernet
API for Software Integration
- Argos Server software to Iris UI and other Situational Awareness Systems
Gallery
